 샘플 셀 및 진공 챔버 윈도우

 하이 게인 레이저를 위한 출력 커플러

 주문 제작, 저손실, 높은 손상 임계값 AR 코팅, 파장 또는기판 옵션에 대한 사용 가능 여부는 당사 판매 그룹에문의하십시오.

Specifications

Product Code

W1, W2

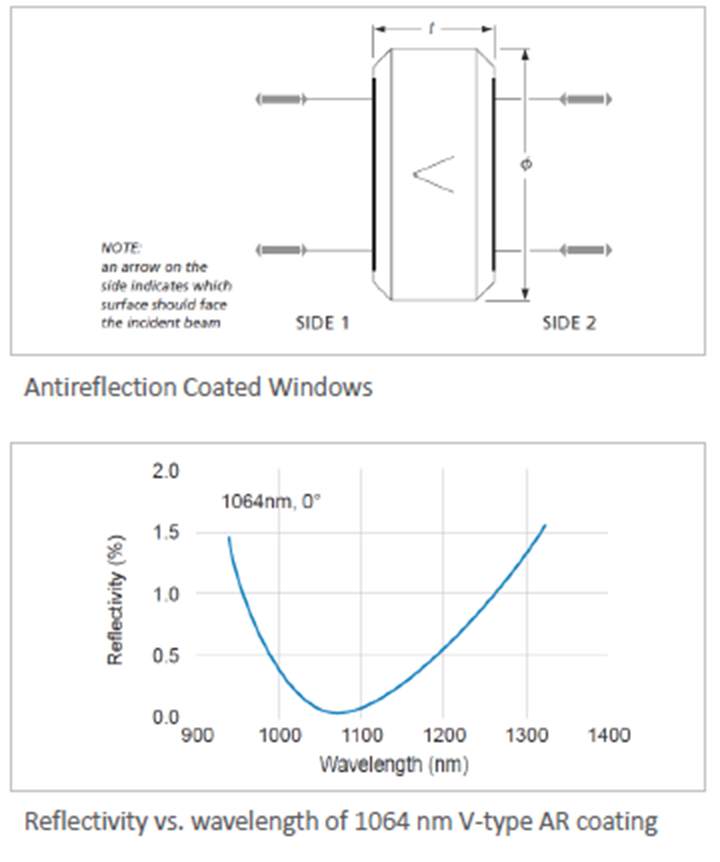

Antireflection Coating Single wavelength:

R≤0.25% per surface @ 0°

R≤0.75% per surface @ 45°UNP

R≤1.30% per surface @ 45°S

R≤0.25% per surface @ 45°P

Antireflection Coating Broadband AR:

Ravg≤0.50% per surface @ 0°

R≤1.50% per surface @ 45°UNP

R≤3.0% per surface @ 45°S

R≤0.50% per surface @ 45°P

Antireflection Coating Dual wavelength:

R≤0.30% at 1064 nm @ 0°

R≤0.60% at 532 nm @ 0°

Coating Technology:

Electron Beam Multilayer Dielectric

Adhesion and Durability:

Per MIL-C-675C. Insoluble in lab solvents.

Clear Aperture:

≥85% of central diameter

Angle of Incidence:

User specified

Damage Threshold Pulsed:

Single wavelength: 15 J/cm2, 20 nsec,

20 Hz @ 1064 nm

Broadband: 10 J/cm2, 20 nsec, 20 Hz @ 1064 nm

Dual wavelength: 5 J/cm2, 20 nsec,

20 Hz @ 532 nm,

10 J/cm2, 20 nsec, 20 Hz @ 1064 nm

Damage Threshold Continuous Wave:

1 MW/cm2 @ 1064 nm

Optical Material:

UV-grade fused silica

Transmitted Wavefront Error:

λ/10 @ 633 nm

Surface Quality:

10-5 scratch and dig

Diameter:

Ø 0/–0.25 mm

Thickness:

t±0.25 mm

Wedge:

≤ 10 arc sec or 30±5 arc min

Chamfer:

Ø ≤50.8 mm: 0.35 mm @ 45°,

Ø > 50.8 mm: 0.85 mm @ 45°
