 평균 반사율은 400 nm ~ 800 nm에서 87%를 초과합니다.

Specifications

Product Code

PAV

Dimensions

Square: ☐±0.25 mm

Round: Ø 0/–0.25 mm

Thickness

t±0.25 mm

Parallelism

3 arc minutes

Clear Aperture

Round: ≥85% of central diameter

Square: ≥80% of edge dimension

Coating

Protected aluminum

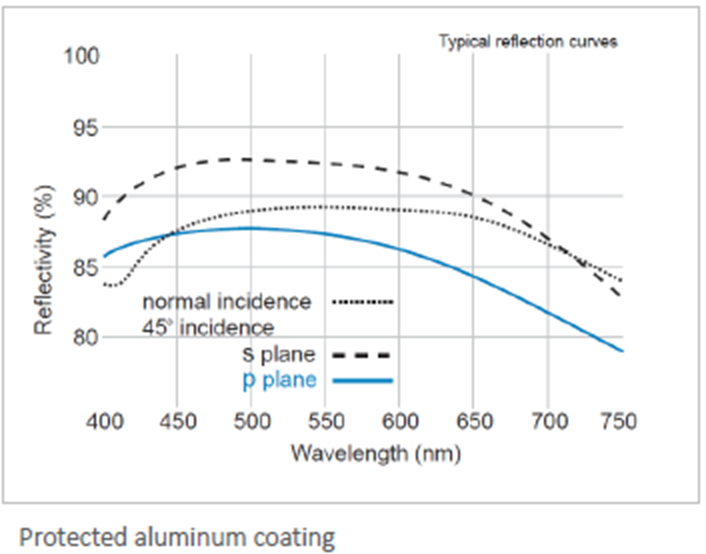

Average Reflectance

≥87% (400 – 800 nm)

Substrate Material

N-BK7

Wavelength Range (nm)

400 – 800 nm
